At Arrow Machine Works we have the Machine Tools for your project. Featuring large
capacity Machine Tools and State of the Art Integrated Work Stations.
HEAVY MACHINE TOOLS
CNC PLANER MILL
LARGE CAPACITY CYLINDRICAL GRINDER
38” x 240”
G2
CHURCHILL
P1
LATHE
22” x 90”
L7
SAIMP
CYLINDRICAL GRINDERS
CNC LATHE
38” x 240”
L6
TOOLMAX TUR 930
CONVENTIONAL EQPT

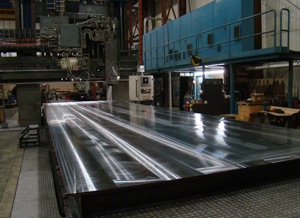

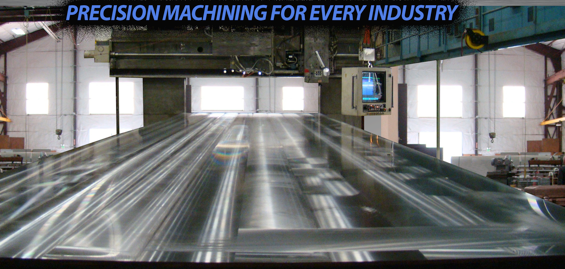

The CNC Planer Mill recently acquired by Arrow Machine Works has a very large capacity to produce very large parts. The table is 34’ long with 71’ of travel. This will allow them to manufacture enormous parts and broaden the choices for their customers.
VIEW PRESS RELEASE
The G2 Specialty Precision Cylindrical Grinder provides close tolerances and the ability to grind almost any overlay. Some of the overlays include: Tungsten Carbide, Hardface, HVOF, Thermal Spray, N5 Hardface and C6 Hardface.
Speciality Wheels include: Silicon Carbide and Diamond
Arrow Machine Works has extensive experience in Grinding for a variety of industries which allows them to offer fast service at competitive prices. From a one part run to large production runs, no project is too large or too small.
The L6 Large CNC Lathe is capable of long turning lengths up to 240”. It is a high tech computer controlled machine and can be programmed to do precision cutting by converting the digital signal into a desired action. The design wanted is first created on specialized software, and then transferred to the required material. The L6 CNC Lathe at Arrow Machine Works has a large capacity and a very long bed allowing them to manufacture extremely large parts.
“This is one of the largest capacity CNC lathe’s in the Portland area”, said GM Alek Drakos.
CNC PLANER MILL
TABLE: 34’ LONG
TRAVEL: 71‘ LONG (x 852”)
WIDTH: 10’ WIDE (y 120”)
UNDER RAIL: 10’ (z 100”)
CRANE: 30 TON CAPACITY
INGERSOLL CNC PLANER MILL
STATE OF THE ART
MACHINING FACILITY
SLOTTER
24” STROKE
ROCKFORD
S1
Your machining challenge...our opportunity.
SLOTTER
42” STROKE
ROCKFORD
S2
